C4 A/C Climate Control Panel Rebuilding Service 1990-1996

This is a rebuilding service offered by Corvette Salvage for a C4 A/C Climate Control Panel.

Body and trim: Base, Collector's Edition, Grand Sport, Indianapolis 500 Pace Car, ZR-1, 40th Anniversary Edition

What is a Climate Control Panel? The climate control panel is the command center of the A/C system. It is housed in the dash and sends all necessary commands to begin the cooling or heating. It features a combination of buttons, dials, and/or knobs. Over time, heat can dry out the capacitors in a C68 A/C Climate Control Panel and eventually short them. Reverse or 24V jump starts can damage protection diodes. Age and potholes cause the bulbs in the control unit to blow. This rebuilding service will fix the common symptoms listed below to restore any 1990 to 1996 Corvette A/C Climate Control Panel back to factory specifications:

• The control unit display is blank, or the control unit operation is intermittent.
• The control unit functions, but the buttons and/or display don't illuminate.
• Cold air blows from the vents when heat is selected, or hot air blows when A/C is selected.

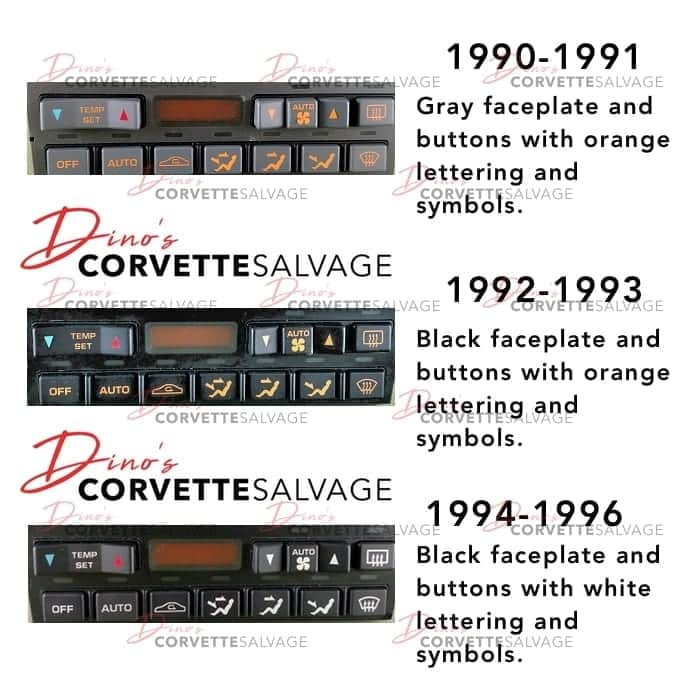

GM Part Numbers:

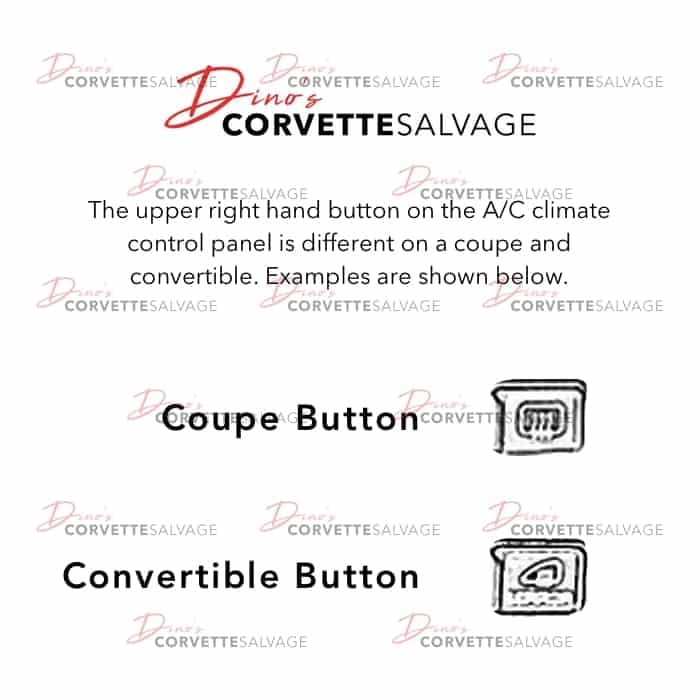

1994 to 1996, Convertible	19153504, 16195043
1994 to 1996, Coupe	19153503, 16192608, 16170901, 16162118
1992 to 1993, Convertible	19151956, 16161741
1992 to 1993, Coupe	16162118, 16161731
1990 to 1991, Convertible	16152502, 16125967, 16150839, 16150501
1990 to 1991, Coupe	19151995, 16152503, 16125963, 16150511

After you order, ship your original part to:

Dino's Corvette Salvage, LLC

3545 Hwy 43 North

Picayune, MS 39466

You will also receive an email after ordering with further instructions.
