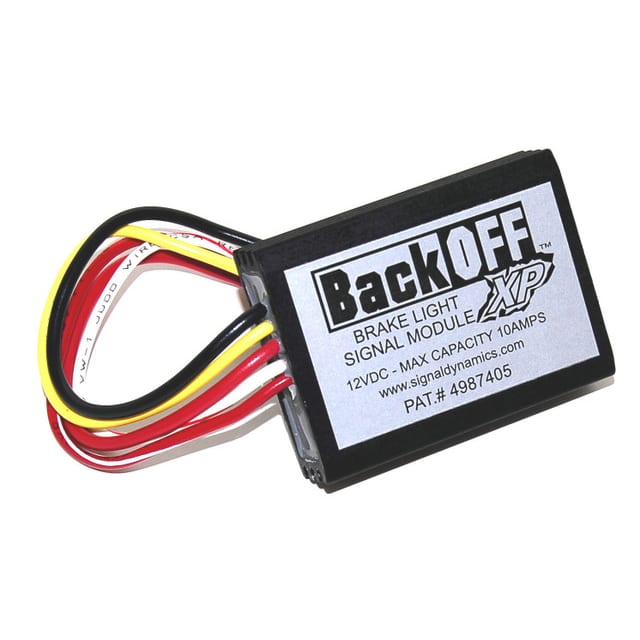

C4-C6 New Back-Off XP Third Brake Light Flasher Module 1986-2013

New reproduction back-Off XP Third Brake Light Flasher Module for 1986-2013 Corvettes.

• Designed for 1986-2013 Corvettes
• Automatically flashes the existing brake lights to help attract the attention of following drivers when braking or stopped
• Compatible with LED, incandescent, and combination LED/incandescent brake lights
• No load equalizers required
• Mode 1: 5 short flashes followed by 4 seconds of steady illumination, repeating continuously while the brakes are applied
• Mode 2: 5 rapid flashes followed by steady brake light illumination for the duration of braking
• Can be used with multiple brake light systems to create a more noticeable lighting effect
• Installs inline with the existing brake light wiring
• Black wire: Connect to ground
• Red wire: Connect to the brake light wire leading toward the brake switch
• White/Red Stripe wire: Mode 1 output
• connect to the brake light wire
• Red/White Stripe wire: Mode 2 output
• Cap off the unused output wire
• Optional hazard flasher feature: Connect the yellow wire through a toggle switch (not included) to a fused 12V+ power source
• Solid-state electronic design with a compact, water-resistant anodized aluminum housing.

Reference part number: Mods #1279.
