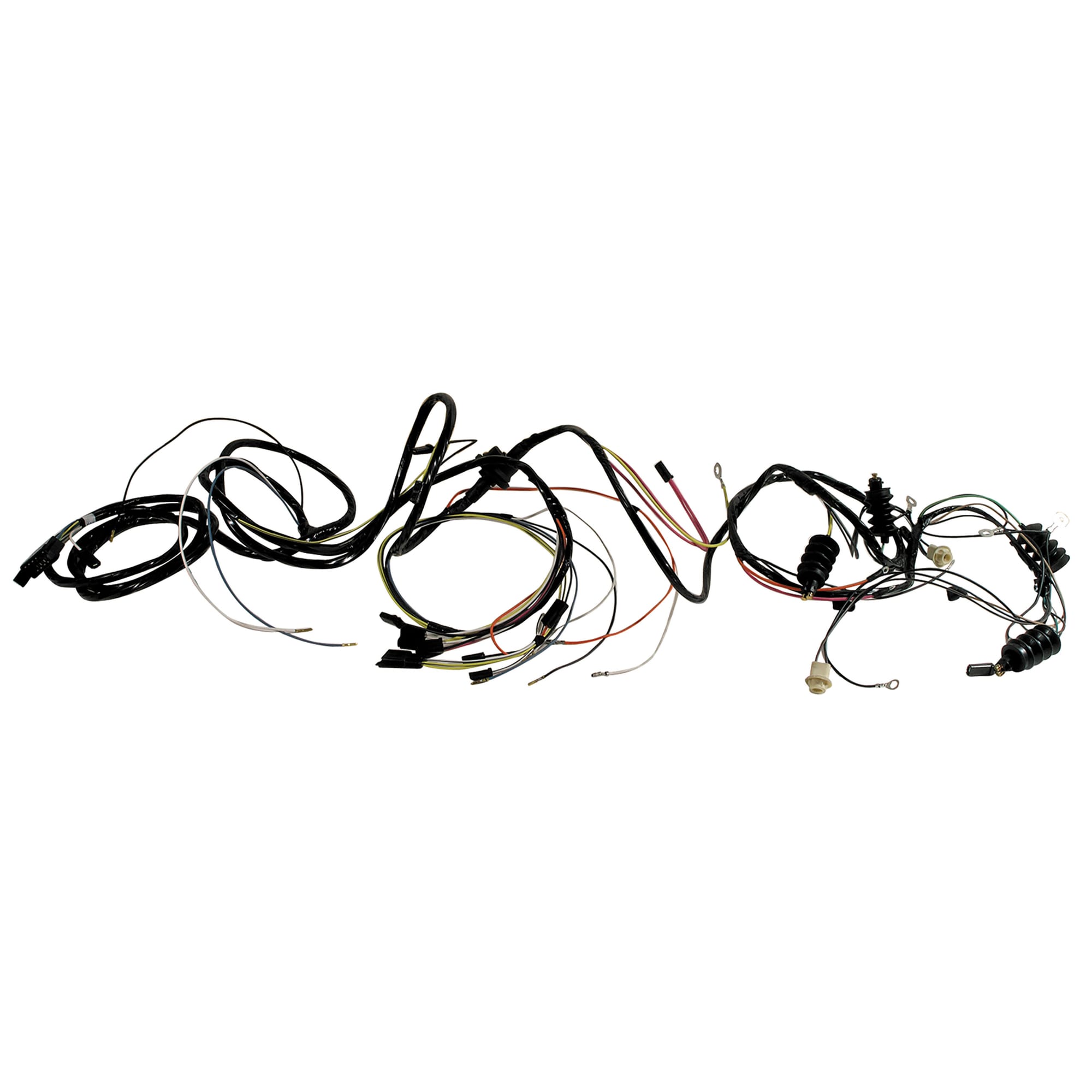

C3 New Rear Body Harness 1972

New reproduction rear body harness for 1972 Corvettes.

Lectric Limited Part Number: VRH7200

OEM Part Number: 08908177

Connects to:

• Alarm System Flasher
• Alarm System Harness Connection
• Alarm System Horn (power feed & ground)(located behind driver side fender)
• Alarm System On/Off Switch (located on rear body panel)
• Alarm System Relay
• Backup Lights (driver & passenger side)
• Backup Lights Ground (driver & passenger side)
• Dash Harness Connection
• Door Ajar Switch (driver & passenger side)
• Fuel Tank Sending Unit (ground & return signal terminals)
• Ground (to frame rail, driver side)
• Interior Rear Compartment Light
• License Plate Light Assembly (power feed terminal & ground to license light housing screw)
• Rear Glove Box Light Switch Assembly (passenger side)
• Rear Lights (tail/stop, driver & passenger side)
• Rear Lights Ground (tail/stop, driver & passenger side)
• Rear Side Marker Lights (driver & passenger side)
• Seat Belt Retractor Switch (driver & passenger side)
• Seat Switch Connection (passenger side)
