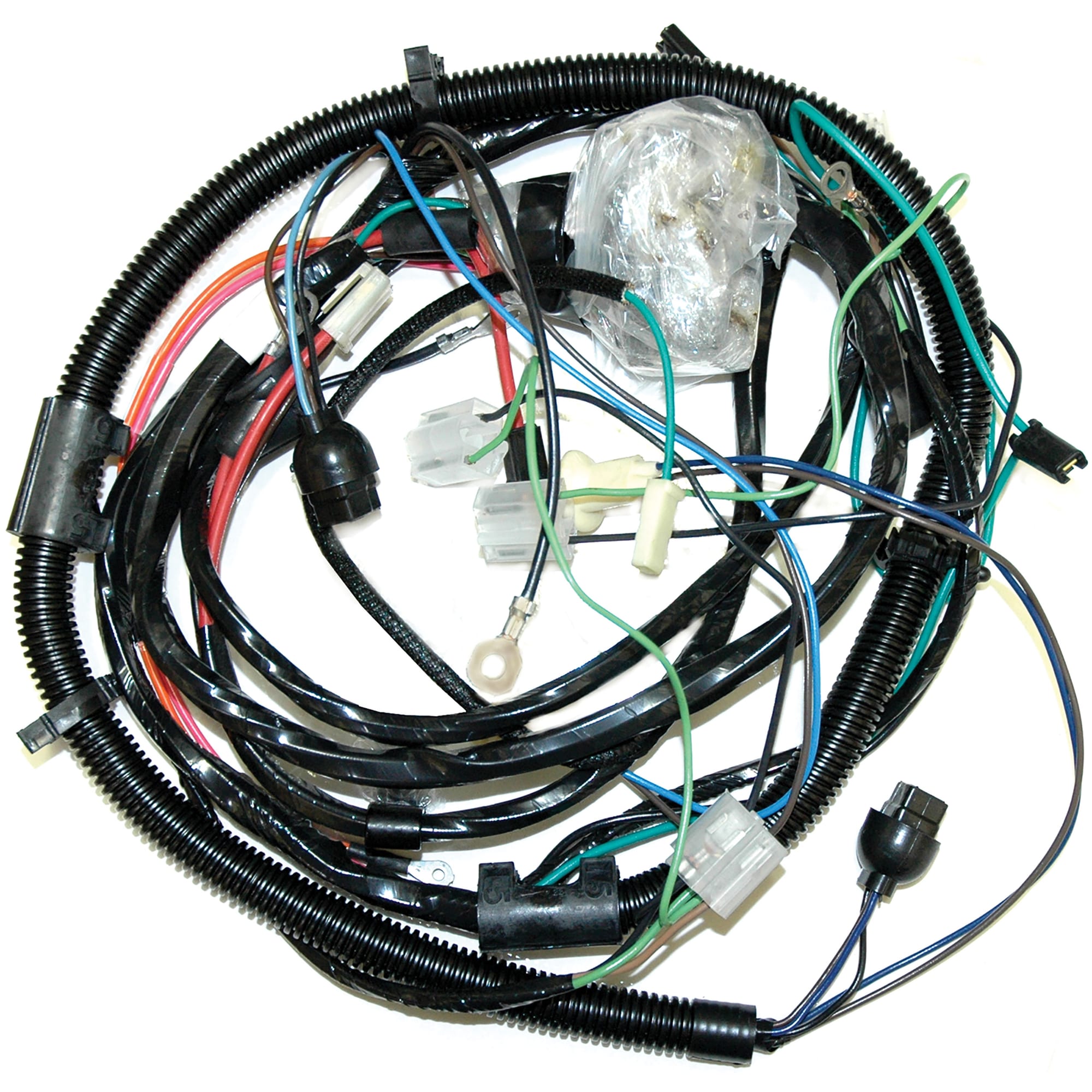

C3 New Forward Lamp Harness 1977

New reproduction forward lamp harness for 1977 Corvettes. 1st design: VIN ending in 00001 to 27372, alarm switch located in driver side front fender & alarm horn located behind driver side rear fender Note: Requires use of VPL7077 to complete wiring to front parking/turn signal lights.

Lectric Limited Part Number: VHL7700FD

OEM Part Number: 08916431

Connects to:

• Accessory Junction Block (driver side fender)
• Air Conditioning Harness Connection (with A/C)
• Alarm System On/Off Switch
• Alternator
• Brake Pressure Warning Switch
• Dash Harness Connection (at firewall)
• Engine Harness Connection (without A/C)
• Fiberoptic (front)
• Ground (to alternator)
• Ground (to driver side radiator support)
• Ground (to header support)
• Headlights (driver & passenger side)
• Horn (driver & passenger side)
• Parking Light Extension Connection (front, driver & passenger side)
• Side Marker Light (driver & passenger side)
• Temperature Sending Unit
