C3 New Dash Harness 1977

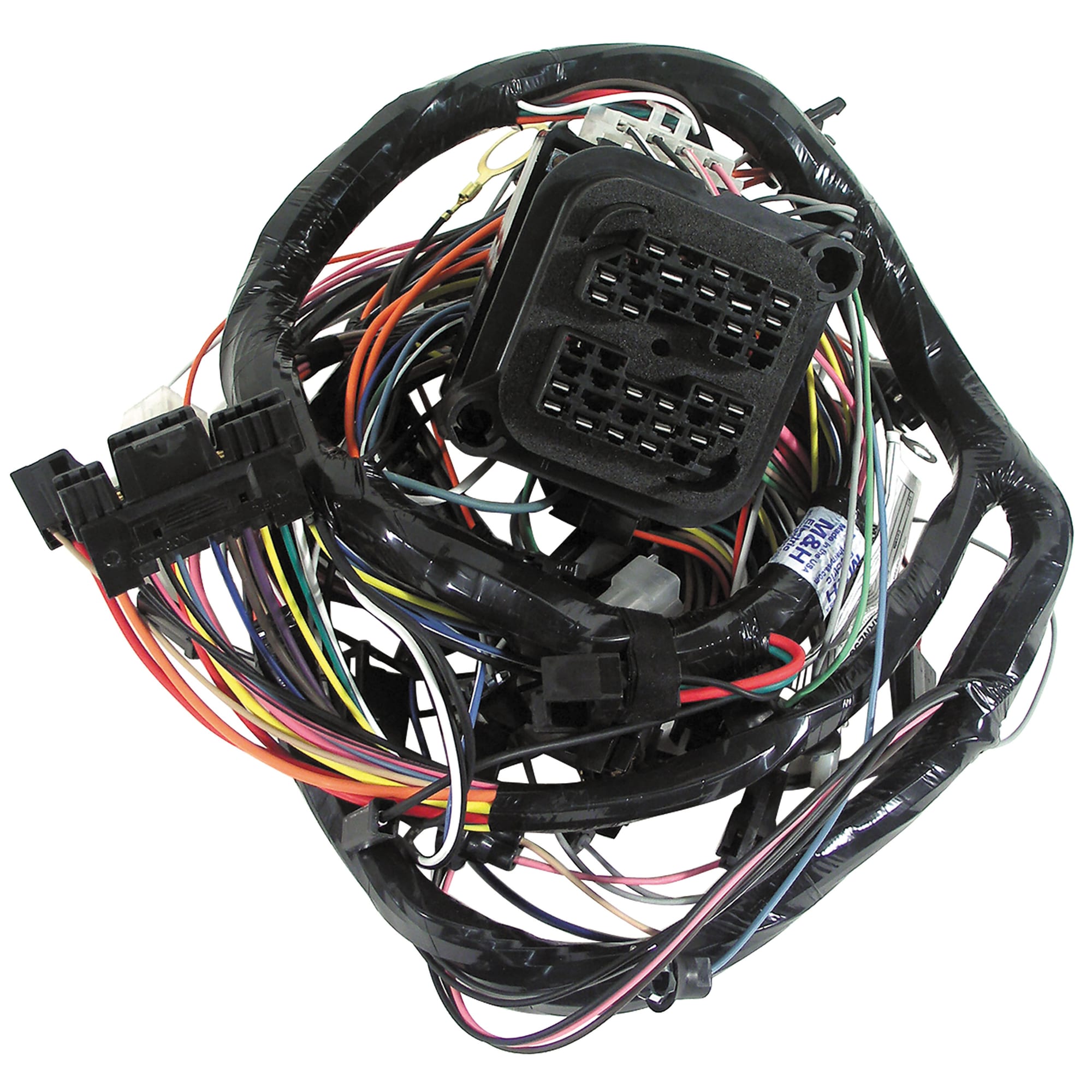

New reproduction dash harness for 1977 Corvettes. 2nd design: VIN ending in 27373 to 49213, alarm switch located in driver side door lock cylinder & alarm horn located behind driver side front fender, near firewall.

Lectric Limited Part Number: VMA7700SD

OEM Part Number: 12005303

Connects to:

• Air Conditioning Harness Connection (with A/C)
• Alarm System Flasher
• Alarm System Harness Connection
• Alarm System Relay
• Brake Light Switch
• Bulkhead Connector (passes through firewall)
• Center Gauge Cluster
• Cigarette Lighter
• Cigarette Lighter Ground
• Courtesy Light (driver & passenger side)
• Courtesy Light Switch (driver & passenger side)
• Courtesy Light Timer Connection
• Fuse Block
• Ground (to hinge pillar inner reinforcement)
• Hazard Flasher (fuse block)
• Headlight Dimmer Switch
• Headlight Switch
• Headlight Warning Buzzer
• Heater & A/C Control Panel Light Harness Connection
• Heater Harness Connection (without A/C)
• Hi-Beam Light
• Horn Relay
• Ignition Switch
• Instrument Cluster Ground
• Instrument Lights
• Neutral Safety/Backup Light Switch Connection (automatic transmission)
• Neutral Safety/Backup Light Extension Harness Connection (manual transmission)
• Parking Brake Warning Light Switch
• Parking Brake Warning Light
• Radio
• Rear Body Harness Connection
• Seat Belt & Key Warning Buzzer
• Seat Belt Buckle Connection (driver side)
• Shift Plate Indicator Light (not used on manual transmission)
• Tachometer
• Turn Signal Flasher
• Turn Signal Light (left & right side)
• Turn Signal Switch Connection
• Windshield Wiper & Washer Switch
