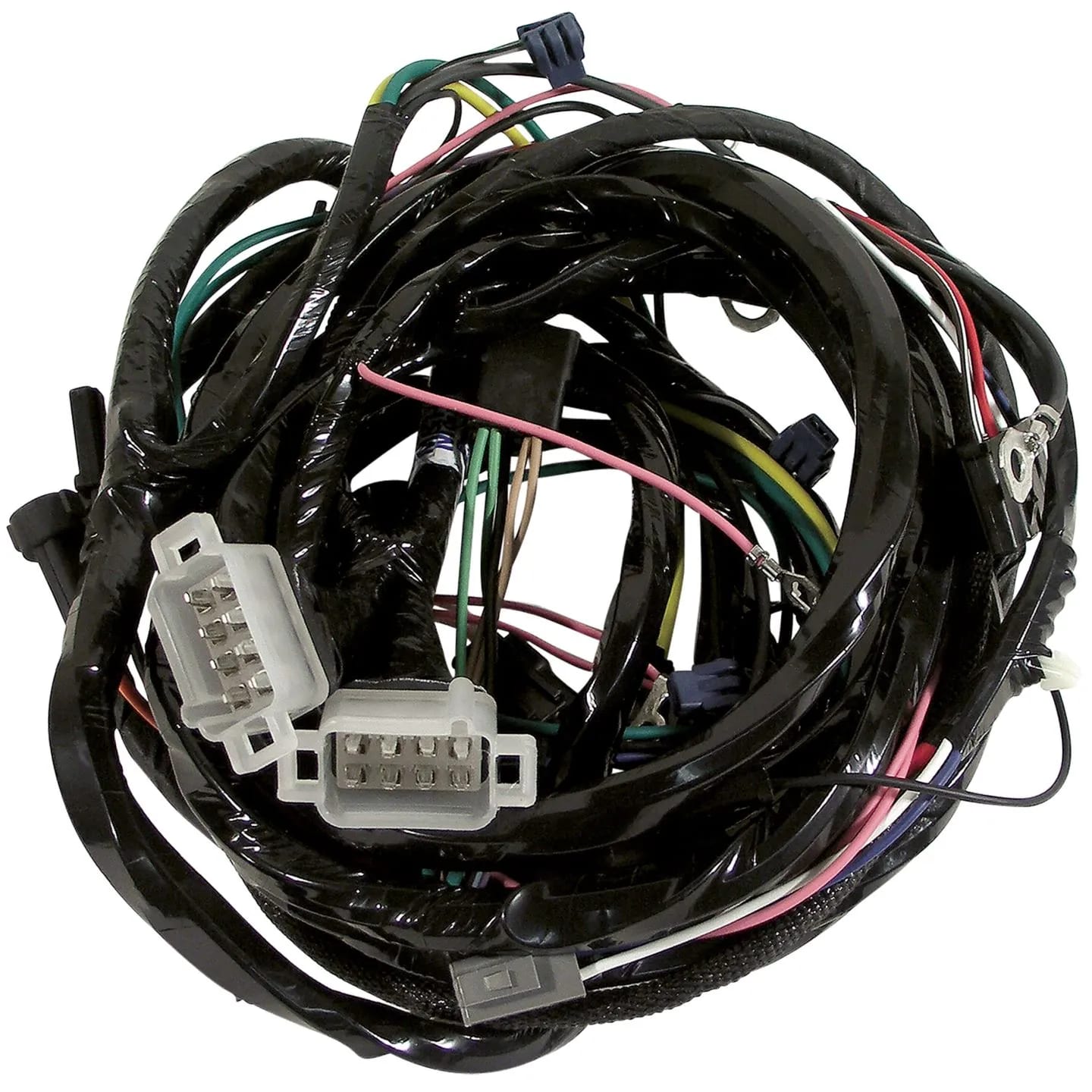

C2 New Engine And Forward Lamp Harness 1966

Name: C2 New Engine And Forward Lamp Harness 1966
Brand: Lectric Limited
SKU: VIG6600
Price: 534.00 USD
Availability: InStock

Lectric Limited · Wiring Harnesses

Fits C2 · 1966. See Fitment

$534.00

New (Reproduction)SKU VIG6600OEM VIG6600OEM 06289375In Stock

Price

$534.00

Compatibility

Fitment

Model Years

1966

Generations

New reproduction engine and forward lamp harness for 1966 Corvettes. Note: Requires use of VHX6367 to complete wiring to headlights.

Lectric Limited Part Number: VIG6600

OEM Part Number: 06289375

Connects to:

Alternator
Dash Harness Connections (at firewall)
Ground (to headlight motor retainer bolt, driver & passenger side)
Ground (to horn relay mounting bolt)
Ground (to starter motor mounting bolt)
Ground (to voltage regulator)
Headlight Bucket Extension Harness Connection (driver & passenger side)
Headlight Door Limit Switch (driver & passenger side)
Headlight Door Motor (driver & passenger side)
Heater Blower Motor (cars without A/C)
Heater Blower Motor Ground Terminal (cars without A/C)
Horn (driver & passenger side)
Horn Relay
Ignition Ballast Resistor (top screw terminal)
Ignition Coil ("+" terminal)
Neutral Safety Switch/Backup Light Switch Connection (automatic transmission) -or- Dash Harness Connection (manual transmission)
Parking Light (driver & passenger side)
Starter Solenoid
Temperature Sending Unit
Voltage Regulator
Windshield Wiper Motor Ground Terminal
