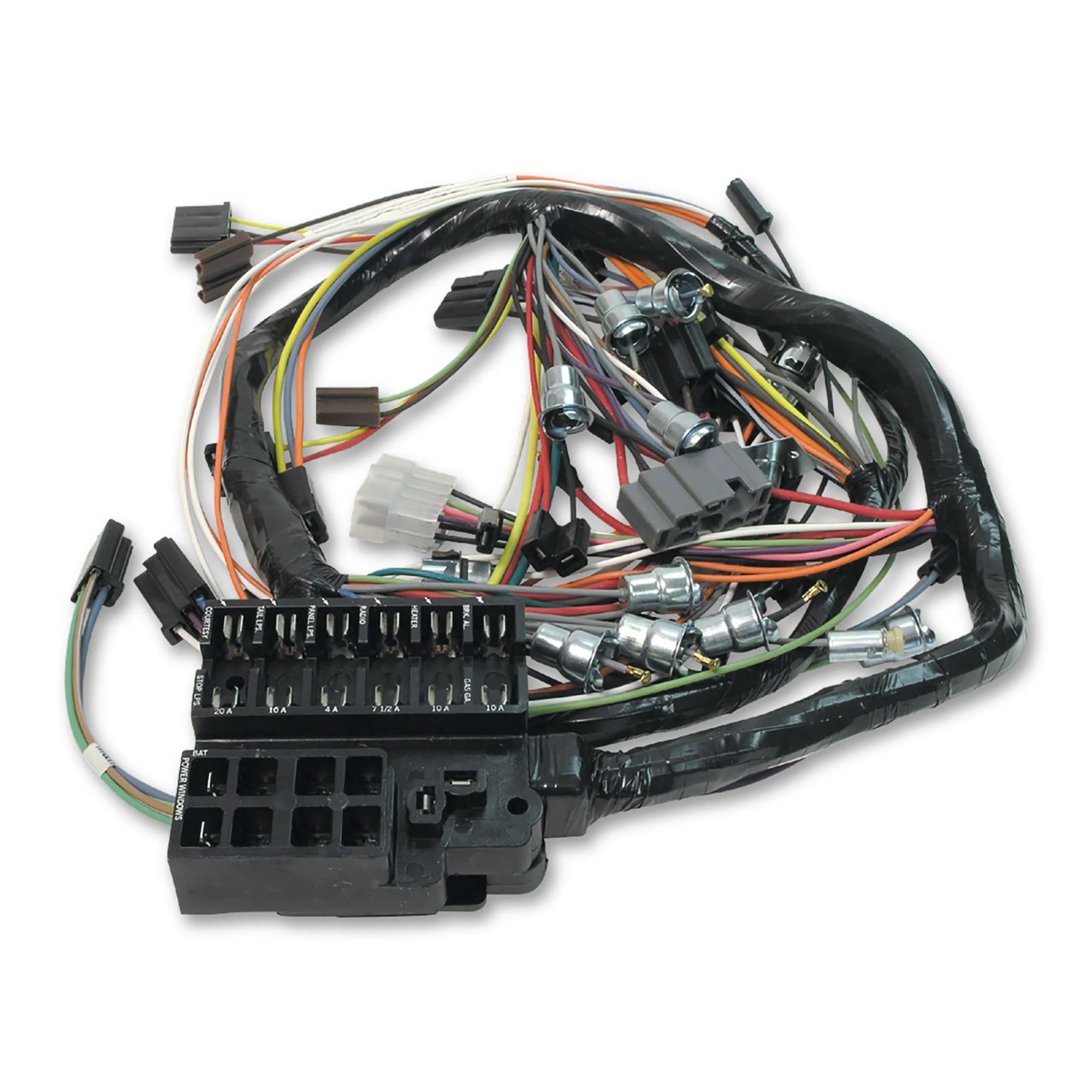

C2 New Dash Harness 1963

New reproduction dash harness for 1963 Corvettes. Without backup lights.

Lectric Limited Part Number: VMA6300NB

OEM Part Number: 02983971

Connects to:

• Ammeter Gauge
• Brake Light Switch
• Brake Warning Light
• Bulkhead Connector (passes through firewall)
• Cigarette Lighter
• Cigarette Lighter Light
• Clock
• Clock Lights
• Courtesy Light (driver & passenger side)
• Courtesy Light Switch (driver & passenger side)
• Engine Harness Connection (with A/C)
• Fuel Gauge
• Fuse Block
• Glove Box Light
• Ground (to dash brace)
• Headlight Dimmer Switch
• Headlight Door Motor Circuit Breaker
• Headlight Door Open/Close Switch
• Headlight Switch
• Headlight Warning Light
• Heater Blower Motor Resistor (without A/C)
• Heater Blower Motor Speed Switch (without A/C)
• High Beam Light
• Horn Switch Wire Connection (from inside steering column)
• Ignition Ballast Resistor (bottom screw terminal)
• Ignition Switch
• Ignition Switch Light (attaches to back of instrument cluster)
• Instrument Cluster Grounds
• Instrument Light
• Parking Brake Warning Light Switch
• Radio
• Radio Capacitor
• Rear Body Harness Connection
• Temperature Gauge
• Turn Signal Flasher (fuse block)
• Turn Signal Light (left & right side)
• Turn Signal Switch
• Windshield Washer Pump
• Windshield Wiper & Washer Switch
• Windshield Wiper Motor
