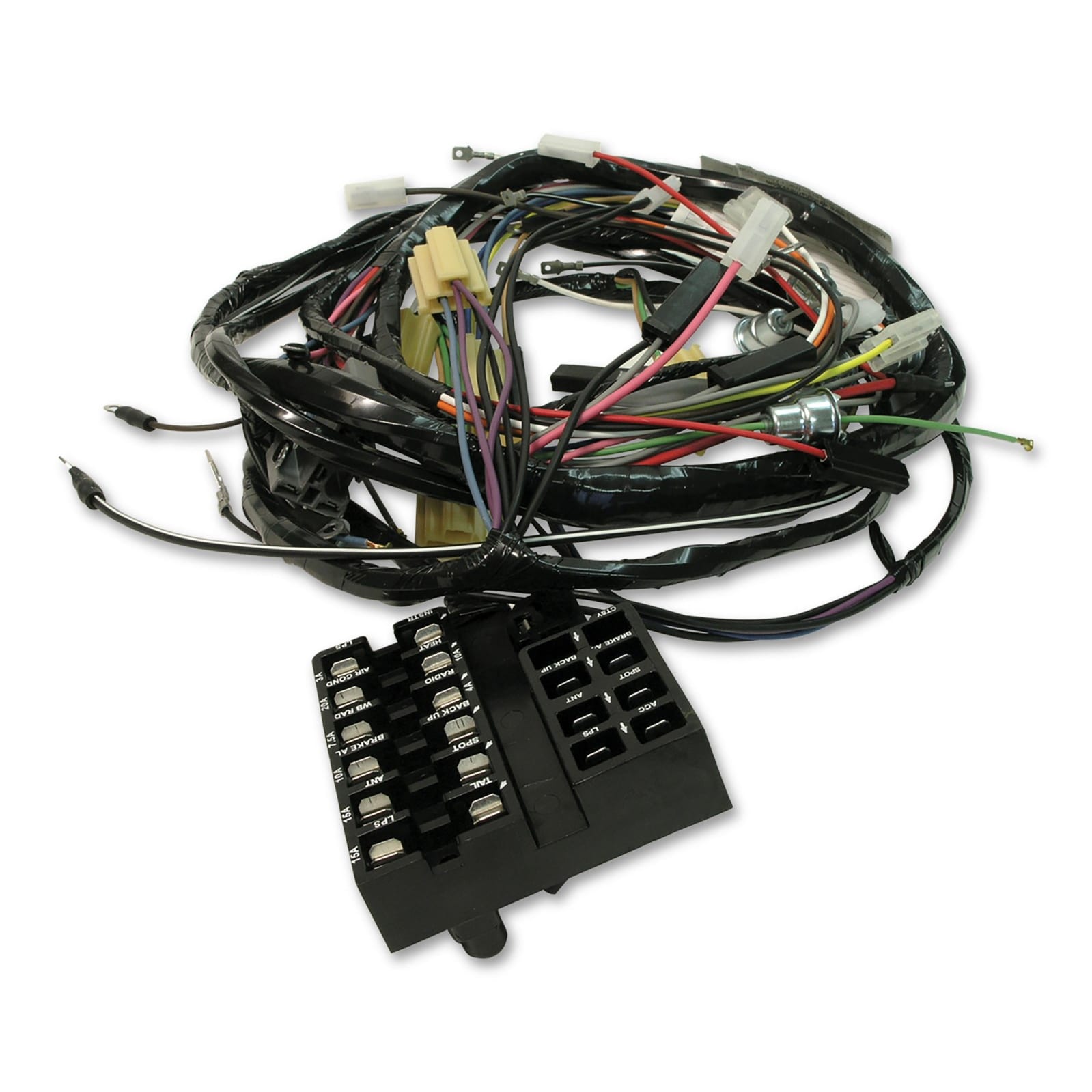

C1 New Dash And Forward Lamp Harness 1958-1961

New reproduction dash and forward lamp harness for 1958-1961 Corvettes. Note: Requires use of VHX5862 to complete wiring to headlights.

Lectric Limited Part Number: VMA5861

OEM Part Number: 02969919

Connects to:

• Ammeter Gauge Terminal (driver side)
• Brake Light Switch
• Cigarette Lighter Light Connection
• Cigarette Lighter Power Feed Terminal
• Clock Harness Connection
• Courtesy Light Harness Connection
• Courtesy Light Switch (driver & passenger side)
• Front Parking Light Assembly Connection (driver & passenger side)
• Fuel Gauge Terminal (driver & passenger side)
• Fuse Block
• Ground (to heater control plate)
• Ground (to driver side valve cover bolt)
• Headlight Dimmer Switch
• Headlight Extension Harness Connection (driver & passenger side)
• Headlight Switch
• Heater Switch
• Horn (driver & passenger side)
• Horn Relay
• Horn Switch Connection
• Ignition Switch ("ACC" terminal & "IGN" bridge terminal)
• Instrument Cluster Grounds
• Instrument Light
• Radio
• Rear Body Harness Connection
• Temperature Gauge Terminal (driver side)
• Turn Signal Flasher
• Turn Signal Light (left & right side)
• Turn Signal Switch Connection
