C1 New Dash And Forward Lamp Harness 1953-1955

Name: C1 New Dash And Forward Lamp Harness 1953-1955
Brand: Lectric Limited
SKU: VMA5354
Price: 712.00 USD
Availability: InStock

Lectric Limited · Wiring Harnesses

Fits C1 · 1953-1955. See Fitment

$712.00

New (Reproduction)SKU VMA5354OEM VMA5354OEM 02961756In Stock

Price

$712.00

Compatibility

Fitment

Model Years

1953-1955

Generations

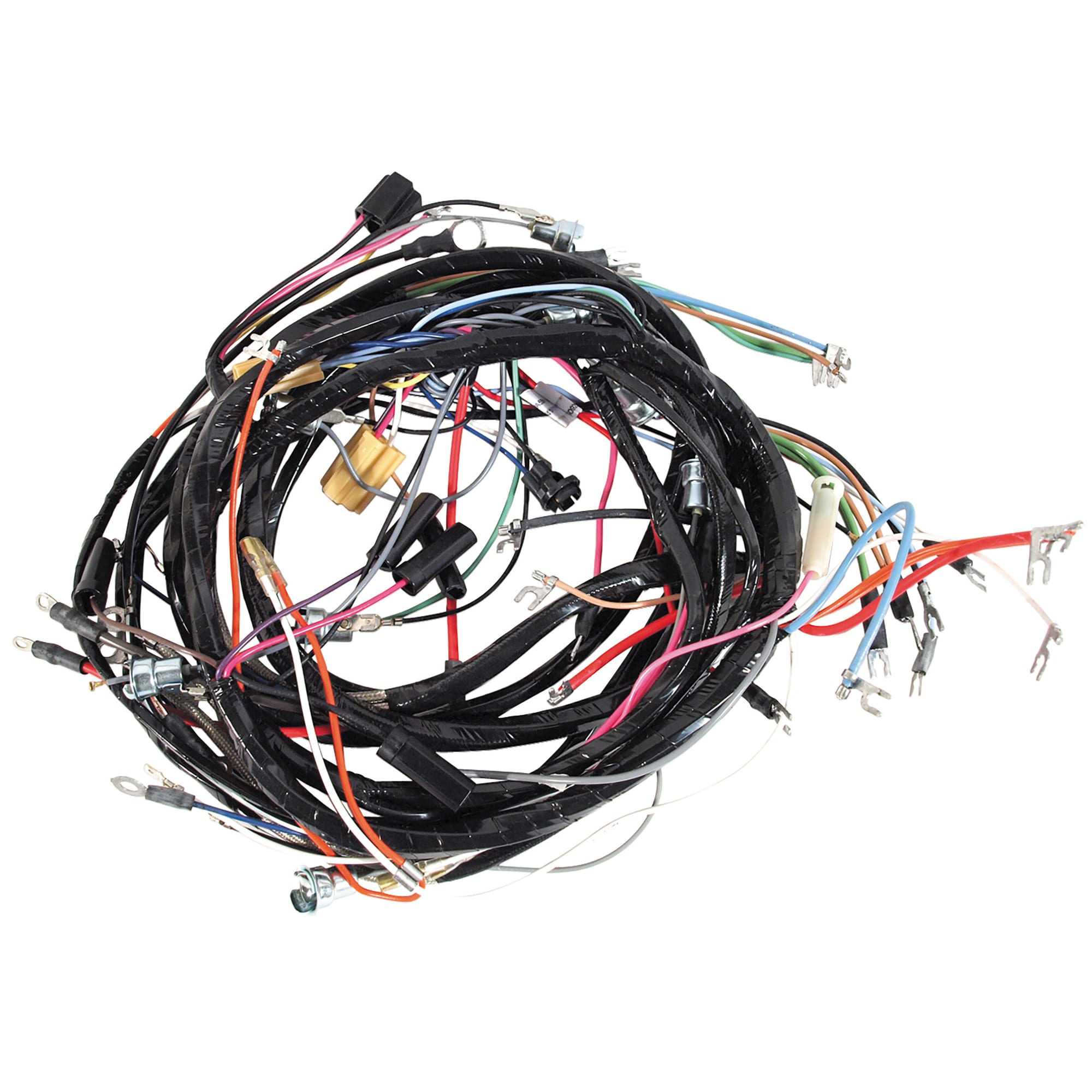

New reproduction dash and forward lamp harness for 1953-1955 Corvettes. 6 Cyl. Note: Requires use of VHX5354 to complete wiring to headlights.

Lectric Limited Part Number: VMA5354

OEM Part Number: 02961756

Connects to:

Ammeter Gauge Terminal (driver side)
Brake Light Switch
Clock Light
Clock Power Terminal
Courtesy Light Connection (passenger side)
Courtesy Light Switch (driver side)
Courtesy Light Switch Connection (passenger side)
Fuel Gauge Terminal (driver & passenger side)
Fuse Panel
Generator
Ground (to bell housing bolt)
Ground (to hood release bracket mounting bolt)
Headlight Dimmer Switch
Headlight Switch
Hi-Beam Indicator Light
Horn (driver & passenger side)
Horn Relay
Horn Switch Connection
Ignition Switch ("ACC" terminal)
Ignition Switch Light
Instrument Lights
Junction Block Connection (driver & passenger side, on fender skirt)
Rear Body Harness Connection
Turn Signal Flasher
Turn Signal Indicator Light (left & right side)
Turn Signal Switch Connection
Voltage Regulator (coaxial condenser, ground armature, field terminal, "Batt" coaxial condenser)
